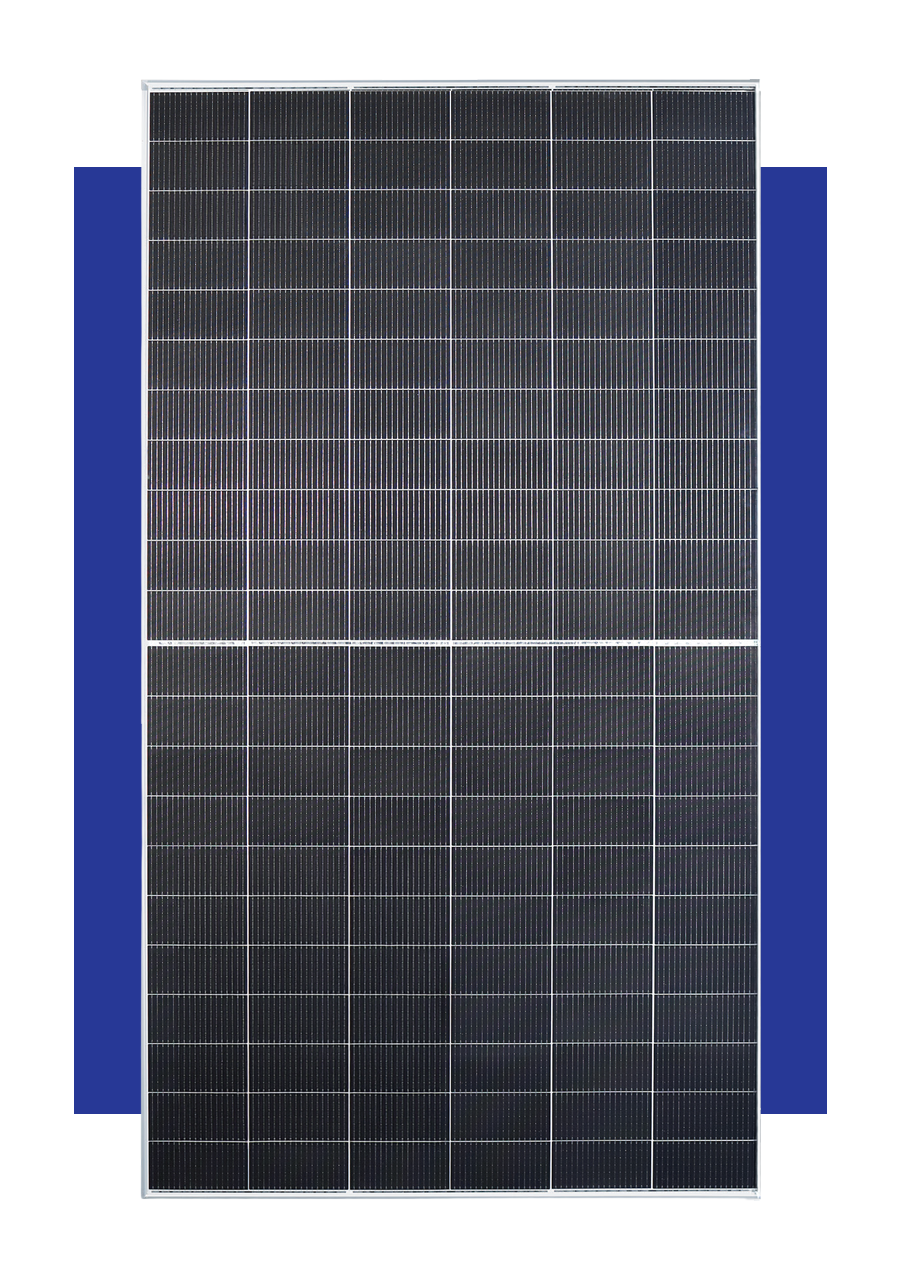

ZAP-G12TG-132
G12 · 720 W N-TOPCon Module
Versatile N-TOPCon dual-glass bifacial module for utility-scale and large commercial & industrial deployments. PID and LeTID resistant with positive power tolerance.
Key specifications
- Peak power (Pmax)
- 720 Wp
- Module efficiency
- 23.18%
- Open circuit voltage (Voc)
- 49.16 V
- Short circuit current (Isc)
- 18.41 A
- Vmp
- 41.36 V
- Imp
- 17.41 A
- Dimensions (mm)
- 2384 × 1303 × 30/35
- Weight
- 38 kg
- Cell configuration
- 132 (16BB), 105 × 210 mm
- Max system voltage
- 1500 V
- Operating temp
- -40°C to +85°C
- Warranty
- 12 yr product / 30 yr power
Mechanical
- Front glass
- 2.0 mm ARC heat-strengthened
- Rear cover
- 2.0 mm heat-strengthened
- Frame
- Anodized aluminium alloy (silver)
- Junction box
- 3-split, IP68 rated
- Connector
- MC4 compatible
- Cable
- 4.0 mm² / 400 mm length
Temperature
- Pmax coeff.
- -0.29 %/°C
- Voc coeff.
- -0.24 %/°C
- Isc coeff.
- +0.042 %/°C
- NOCT
- 45 ± 2 °C
- Bifaciality
- 80 ± 10%
- Load (front/rear)
- 5400 / 2400 Pa
Packaging (40' HQ)
- Pieces per pallet
- 31/36
- Pallets per container
- 20
- Pieces per container
- 620
- Fuse rating
- 35 A
- Power tolerance
- 0 to +4.99 W
- Measurement tolerance
- ± 3%
