ZAP-M10TG-144

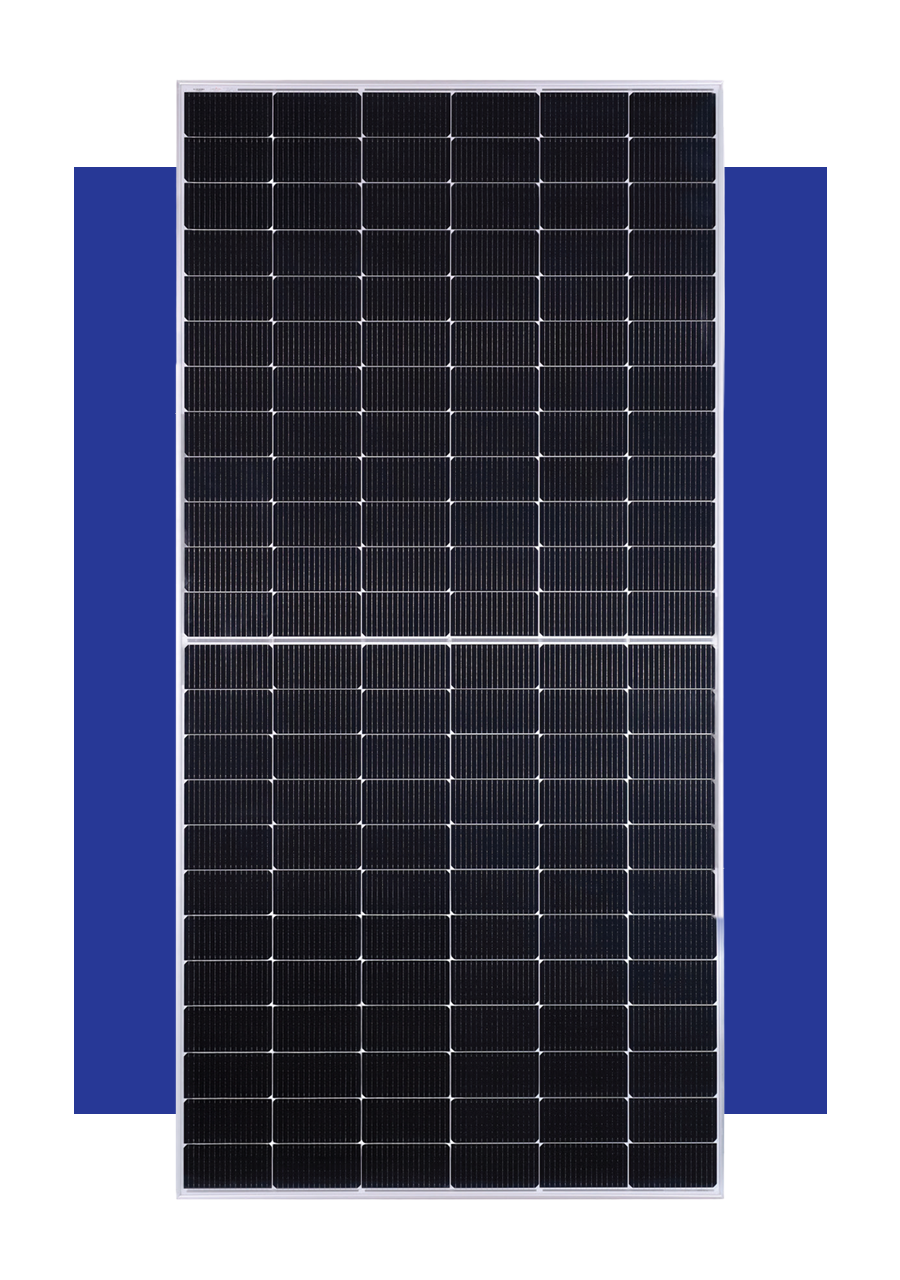

M10 · 590 W N-TOPCon Module
Rooftop and commercial & industrial-ready N-TOPCon dual-glass bifacial module — engineered for harsh environments and long-term performance consistency.
Key specifications
- Peak power (Pmax)
- 590 Wp
- Module efficiency
- 21.9%
- Open circuit voltage (Voc)
- 53.1 V
- Short circuit current (Isc)
- 14.2 A
- Vmp
- 44.6 V
- Imp
- 13.2 A
- Dimensions (mm)
- 2278 × 1134 × 30
- Weight
- 28 kg
- Cell configuration
- 144 half-cells, 182 mm
- Max system voltage
- 1500 V
- Operating temp
- -40°C to +85°C
- Warranty
- 12 yr product / 30 yr power
Mechanical
- Front glass
- 2.0 mm ARC heat-strengthened
- Rear cover
- 2.0 mm heat-strengthened
- Frame
- Anodized aluminium alloy (silver)
- Junction box
- 3-split, IP68 rated
- Connector
- MC4 compatible
- Cable
- 4.0 mm² / 400 mm length
Temperature
- Pmax coeff.
- -0.29 %/°C
- Voc coeff.
- -0.24 %/°C
- Isc coeff.
- +0.042 %/°C
- NOCT
- 45 ± 2 °C
- Bifaciality
- 80 ± 10%
- Load (front/rear)
- 5400 / 2400 Pa
Packaging (40' HQ)
- Pieces per pallet
- 31
- Pallets per container
- 20
- Pieces per container
- 620
- Fuse rating
- 35 A
- Power tolerance
- 0 to +4.99 W
- Measurement tolerance
- ± 3%
